A Painter is the thing that knows how big it wants to be

Day 57 of 100. Between "load an asset" and "draw on a canvas" sits a small abstraction that most people skip past, and it's the one that makes custom drawing reusable.

The symptom

A placeholder that has to be re-implemented everywhere it's used:

// In the avatar
Box(Modifier.size(48.dp).background(Color.LightGray, CircleShape))

// In the feed thumbnail
Box(Modifier.fillMaxWidth().aspectRatio(16f/9f).background(Color.LightGray))

// In the AsyncImage — which wants a Painter, not a composable
AsyncImage(model = url, placeholder = ???)

The first two are composables, so they can't be passed where a Painter is expected. You end up with two implementations of the same visual, and the AsyncImage one falls back to a static drawable that doesn't match.

Why the obvious fix fails

The obvious fix is a shared composable plus a drawable resource:

@Composable fun Placeholder(modifier: Modifier) { … }
// and R.drawable.placeholder for the AsyncImage case

Two sources of truth for one visual, and they drift the first time the design changes. The drawable also can't adapt — a gradient placeholder that should follow the theme is a static PNG that doesn't.

What's needed is something that draws and can be handed to APIs expecting an asset.

The actual mechanism

Painter is an abstract class with two members that matter:

class ShimmerPainter(
    private val color: Color,
    private val progress: Float,
) : Painter() {

    override val intrinsicSize: Size = Size.Unspecified   // "size me from the layout"

    override fun DrawScope.onDraw() {
        drawRect(
            brush = Brush.linearGradient(
                colors = listOf(color, color.copy(alpha = 0.4f), color),
                start = Offset(size.width * (progress - 0.3f), 0f),
                end = Offset(size.width * progress, 0f),
            )
        )
    }
}

intrinsicSize is what a Painter wants to be if nothing constrains it. A bitmap returns its pixel dimensions; a vector returns its viewport. Size.Unspecified means "I have no opinion — the layout decides", which is right for anything that fills its box.

That property is the whole reason Painter exists rather than a plain draw lambda. It's what lets Image(painter, …) size itself from the asset, and what makes Day 55's contentScale meaningful — there's a source size to scale from.

onDraw runs inside a DrawScope, with size already set to whatever the layout allocated. Same scope as Modifier.drawBehind and Canvas, so everything you know from one applies to the others.

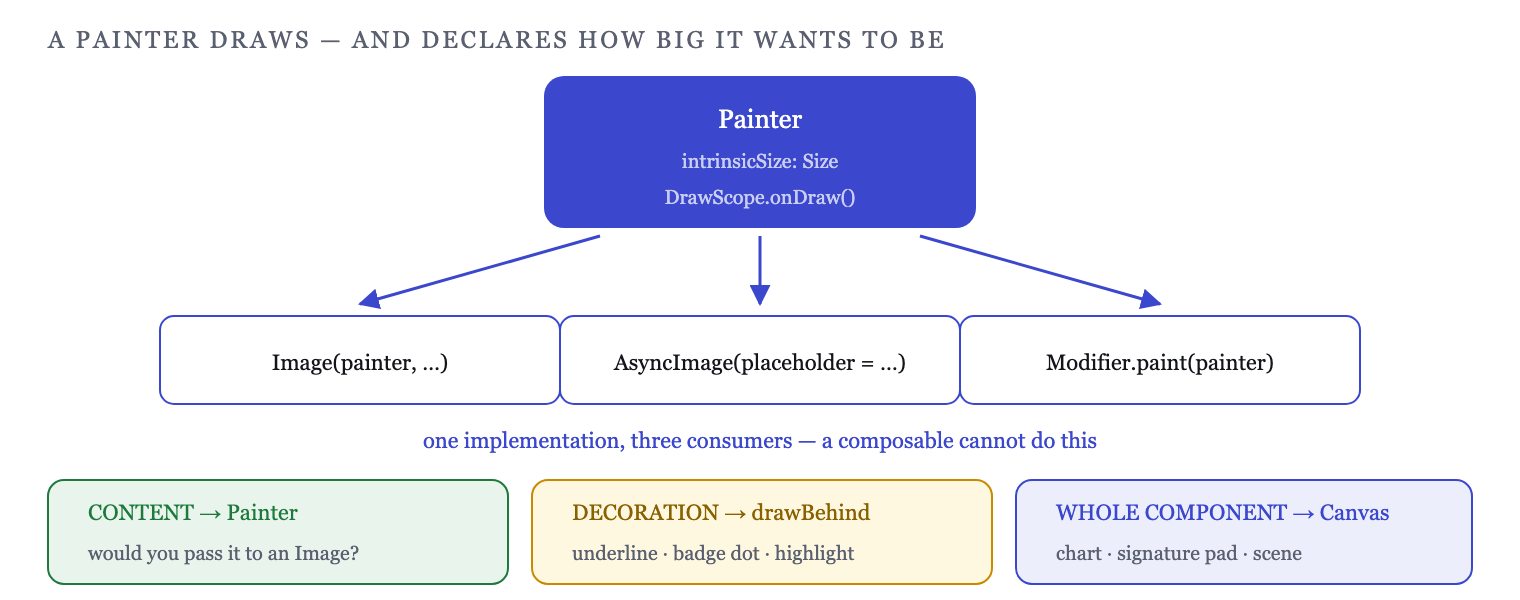

Now the placeholder works in all three places:

val placeholder = ShimmerPainter(surfaceVariant, progress)

Image(painter = placeholder, contentDescription = null, modifier = Modifier.size(48.dp))
AsyncImage(model = url, placeholder = placeholder, contentDescription = null)
Box(Modifier.fillMaxWidth().aspectRatio(16f/9f).paint(placeholder))

Modifier.paint is the third consumer — it draws a Painter as a background, which is how you use one without an Image.

The optional members

Two more overrides, both worth knowing:

override fun applyAlpha(alpha: Float): Boolean { … }
override fun applyColorFilter(colorFilter: ColorFilter?): Boolean { … }

Returning true means "I handled it"; false means the framework applies the effect over your drawing instead. Implementing them lets a painter respond to Image(alpha = …) and Icon(tint = …) natively, which is more efficient than a layer applied afterwards.

Most custom painters return false for both and let the framework handle it. Implement them when the effect needs to apply per-element rather than to the composite — tinting only the foreground of a two-part drawing, for instance.

Making it animate

A Painter is a plain object, so animating one means recomposing with new parameters:

@Composable
fun rememberShimmerPainter(color: Color): Painter {
    val transition = rememberInfiniteTransition(label = "shimmer")
    val progress by transition.animateFloat(
        initialValue = 0f,
        targetValue = 1.3f,
        animationSpec = infiniteRepeatable(tween(1200, easing = LinearEasing)),
        label = "progress",
    )
    return remember(color, progress) { ShimmerPainter(color, progress) }
}

That allocates a painter per frame, which is acceptable for a small object and worth avoiding for a large one. The alternative is a mutable painter holding a mutableFloatStateOf that onDraw reads — the draw-phase read from Day 10, so the animation never invalidates composition at all:

class ShimmerPainter(private val color: Color) : Painter() {
    var progress by mutableFloatStateOf(0f)
    override val intrinsicSize = Size.Unspecified
    override fun DrawScope.onDraw() { /* reads progress here, in the draw phase */ }
}

For anything animating at 60fps this second form is the right one.

When a Painter is the wrong tool

The honest boundary. Use a Painter when the drawing is content — something that could plausibly have been an image, that needs a size, that gets passed around.

Use Modifier.drawBehind / drawWithContent when the drawing is decoration on an existing element: an underline, a badge dot, a selection highlight. Those don't need an intrinsic size and don't get passed anywhere.

Use Canvas when you're drawing a whole component — a chart, a signature pad, a game scene. Canvas is itself a composable with a DrawScope, which is the right level when nothing else is being decorated.

The test: would you ever pass this to an Image? If no, it isn't a Painter.

How to prove it

The intrinsic-size behaviour is the part to verify, since it's what distinguishes a Painter from a draw lambda:

@Preview
@Composable fun PainterSizing() = Column {
    Image(ShimmerPainter(gray, 0.5f), null)                        // unspecified → fills
    Image(ShimmerPainter(gray, 0.5f), null, Modifier.size(48.dp))  // constrained
}

A painter with Size.Unspecified and no modifier fills its parent; one returning a concrete intrinsicSize sizes itself. Getting that wrong shows up as an image that collapses to zero or expands to fill the screen.

For the animation cost, Layout Inspector's recomposition counts: the mutable-state version should show zero recompositions while shimmering. If it climbs at 60/second, the progress value is being read in composition.

What this generalizes to

The idea is an interface that carries both behaviour and metadata. Painter isn't just "a thing that draws" — it's "a thing that draws and knows how big it wants to be", and that second half is what lets it slot into a layout system alongside real assets.

The pattern recurs wherever content and container negotiate: a font knows its metrics, a video knows its dimensions, a chart knows its aspect ratio. Drawing without declaring a size is fine for decoration and insufficient for content, which is exactly the line this abstraction draws.

The Painters you already use

Worth knowing what's in the box before writing one, because three of the four common needs are covered:

• painterResource(id) — a drawable, vector or bitmap, with the intrinsic size taken from the asset.
• BrushPainter(brush) — any of tomorrow's gradients as a painter, which covers most placeholder and decorative-fill cases without a custom class.
• ColorPainter(color) — a flat fill; the simplest possible painter and a good read if you want to see the interface used minimally.
• rememberVectorPainter(imageVector) — for an ImageVector built in Kotlin rather than loaded from resources.

BrushPainter in particular removes the reason to write the shimmer class above in many cases — an animated brush passed to it does the same job. Reach for a custom Painter when the drawing has structure a single brush can't express.

Tomorrow, Day 58: brushes and gradients — the fill side of drawing, and why a gradient defined in pixels breaks on a different screen.

---

Day 57 of a 100-day series on Jetpack Compose, working through the official documentation in order. Source: Custom painter.
